iOS 手势UIGestureRecognizer

这篇文章发布于 2016/11/14,归类于
标签:
iOS UIGestureRecognizer手势识别iOS手势UIGestureios 手势ios 手势事件

监听一个view的触摸事件可以先自定义view,再实现它的touches方法来处理事件。通过touches方法监听view触摸事件必须得自定义view,外界对象无法监听view的触摸对象,且不易区分用户的具体手势行为。这里将介绍手势识别类UIGestureRecognizer,它可以更好的识别触摸事件。


点按手势

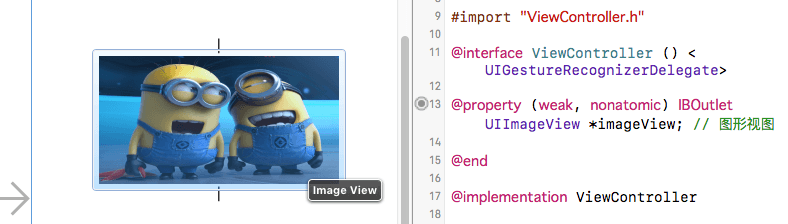

在storyboard里拖拽一个imageView,用来测试点击事件


当点击图片时,打印点击了。用代理实现只有左半边能点击。


长按手势

添加一个长按手势识别


轻扫 (有方向, 默认往右滑)


主要代码

ViewController.m

#import "ViewController.h"

@interface ViewController () <UIGestureRecognizerDelegate>

@property (weak, nonatomic) IBOutlet UIImageView *imageView; // 图形视图

@end

@implementation ViewController

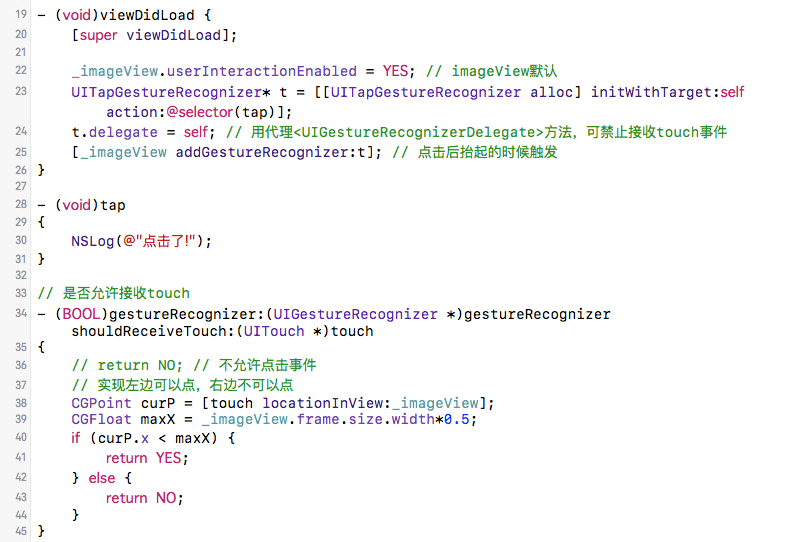

- (void)viewDidLoad {
    [super viewDidLoad];

    _imageView.userInteractionEnabled = YES; // imageView默认
    UITapGestureRecognizer* t = [[UITapGestureRecognizer alloc] initWithTarget:self action:@selector(tap)];
    t.delegate = self; // 用代理<UIGestureRecognizerDelegate>方法,可禁止接收touch事件
    [_imageView addGestureRecognizer:t]; // 点击后抬起的时候触发

    // 长按手势
    UILongPressGestureRecognizer* t2 = [[UILongPressGestureRecognizer alloc] initWithTarget:self action:@selector(longPress:)];
    [_imageView addGestureRecognizer:t2];

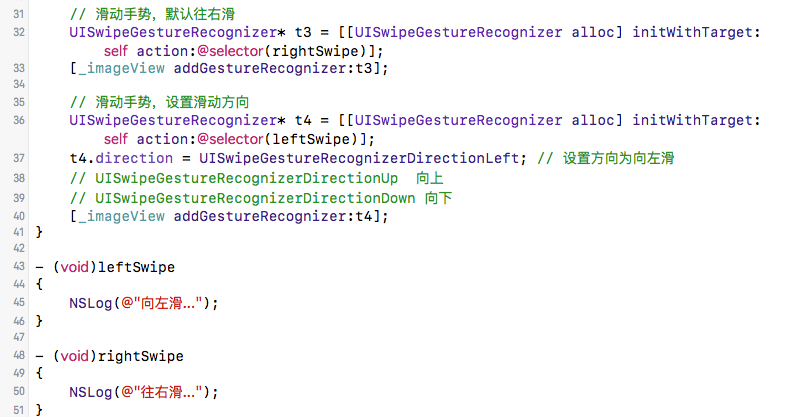

    // 滑动手势,默认往右滑
    UISwipeGestureRecognizer* t3 = [[UISwipeGestureRecognizer alloc] initWithTarget:self action:@selector(rightSwipe)];
    [_imageView addGestureRecognizer:t3];

    // 滑动手势,设置滑动方向
    UISwipeGestureRecognizer* t4 = [[UISwipeGestureRecognizer alloc] initWithTarget:self action:@selector(leftSwipe)];
    t4.direction = UISwipeGestureRecognizerDirectionLeft; // 设置方向为向左滑
    // UISwipeGestureRecognizerDirectionUp  向上
    // UISwipeGestureRecognizerDirectionDown 向下
    [_imageView addGestureRecognizer:t4];
}

- (void)leftSwipe
{
    NSLog(@"向左滑...");
}

- (void)rightSwipe
{
    NSLog(@"往右滑...");
}

- (void)tap
{
    NSLog(@"点击了!");
}

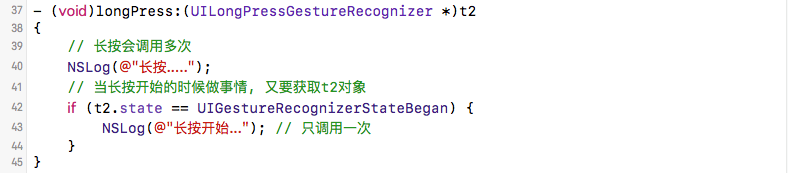

- (void)longPress:(UILongPressGestureRecognizer *)t2
{
    // 长按会调用多次
    NSLog(@"长按.....");
    // 当长按开始的时候做事情, 又要获取t2对象
    if (t2.state == UIGestureRecognizerStateBegan) {
        NSLog(@"长按开始..."); // 只调用一次
    }
}

// 是否允许接收touch
- (BOOL)gestureRecognizer:(UIGestureRecognizer *)gestureRecognizer shouldReceiveTouch:(UITouch *)touch
{
    // return NO; // 不允许点击事件
    // 实现左边可以点,右边不可以点
    CGPoint curP = [touch locationInView:_imageView];
    CGFloat maxX = _imageView.frame.size.width*0.5;
    if (curP.x < maxX) {
        return YES;
    } else {
        return NO;
    }
}


- (void)didReceiveMemoryWarning {
    [super didReceiveMemoryWarning];
    // Dispose of any resources that can be recreated.
}


@end
